TH M4 060 07 100
ITP P/N:
THM406007100
11
TH M4 060 07 100
ITP P/N:
THM406007100

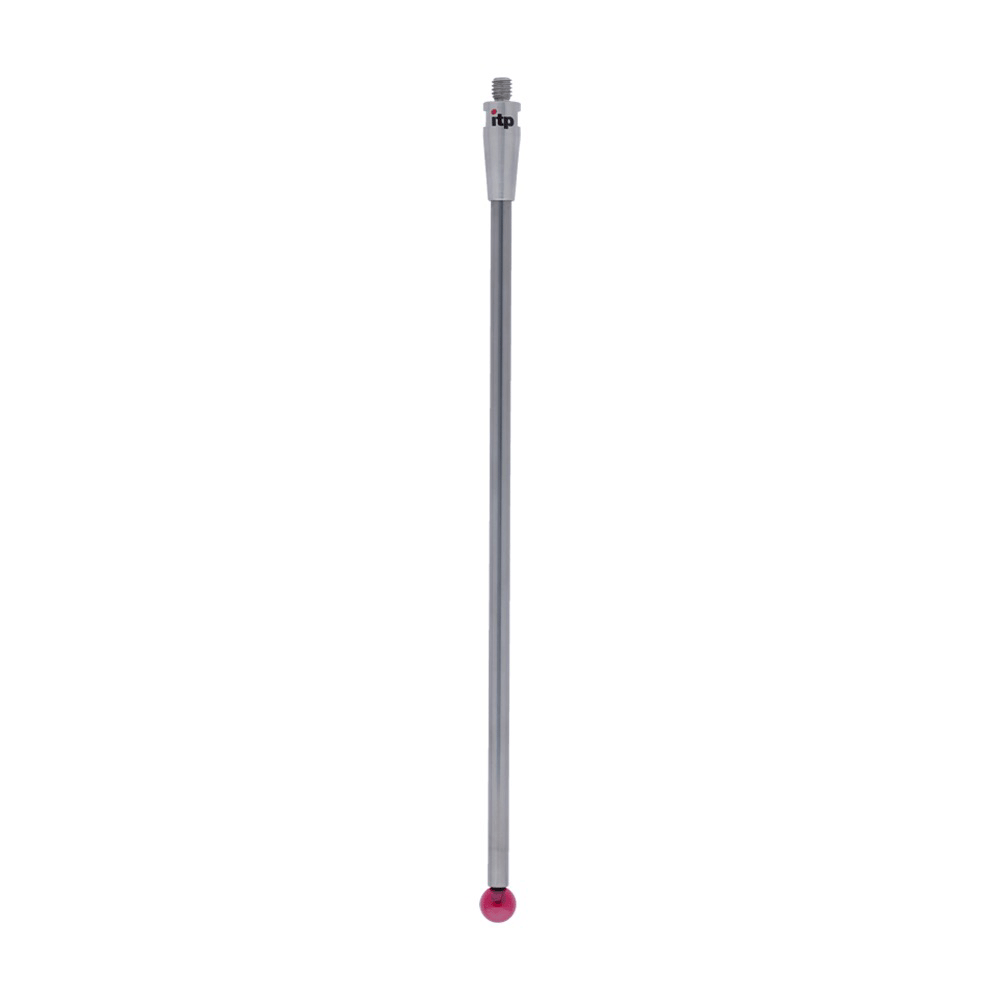

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The carbide stem with its extreme rigidity enables a wide range of dimensions. Ruby balls of the highest quality from Ø1,0mm to Ø8,0mm are used for these styli.
The styli are hand-tightened with an SW5,5 open-end spanner.
Other sizes can be requested via the configurator or by e-mail.
| Thread size: | M4 |
|---|---|
| DK: | 6.0 |
| L: | 103.0 |
| DG: | 7.0 |
| ML: | 94.5 |
| DS: | 4.0 |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Probe ball material: | ruby |
| Weight: | 19.7 |
